Mandrel bending machines

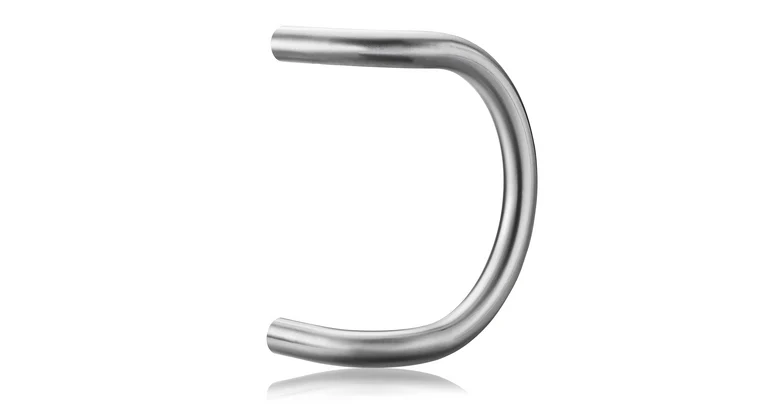

best solutions for the furniture industry
High tech bending freedom without any limitations- Industry 4.0 / t project
- Accurate, great performance and fast
- Durable, also in multi-shift operations
fully automated CNC tube bending machines:
Satisfy even the toughest requirements
Multidimensional and automated bending of tubes. Highly efficient CNC bending technology for small and big bending tasks with the greatest precision. Our fully automated solutions mean optimum cycle times and large production volumes. The outstanding flexibility of our advanced CNC tube bending machines gives you economical bending process and meets the most demanding requirements.
The right machine for your task
Product video
Experience in 3D

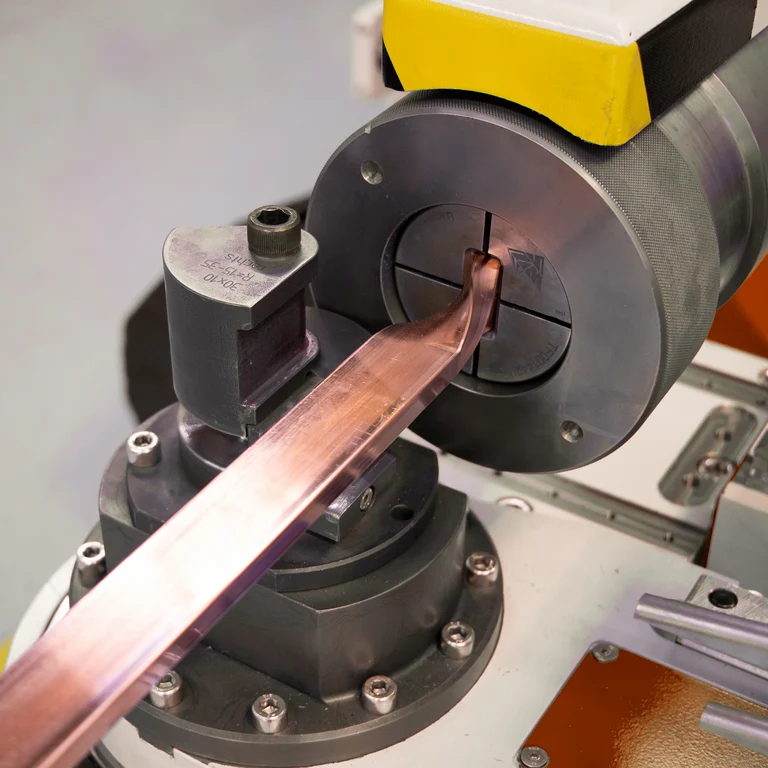

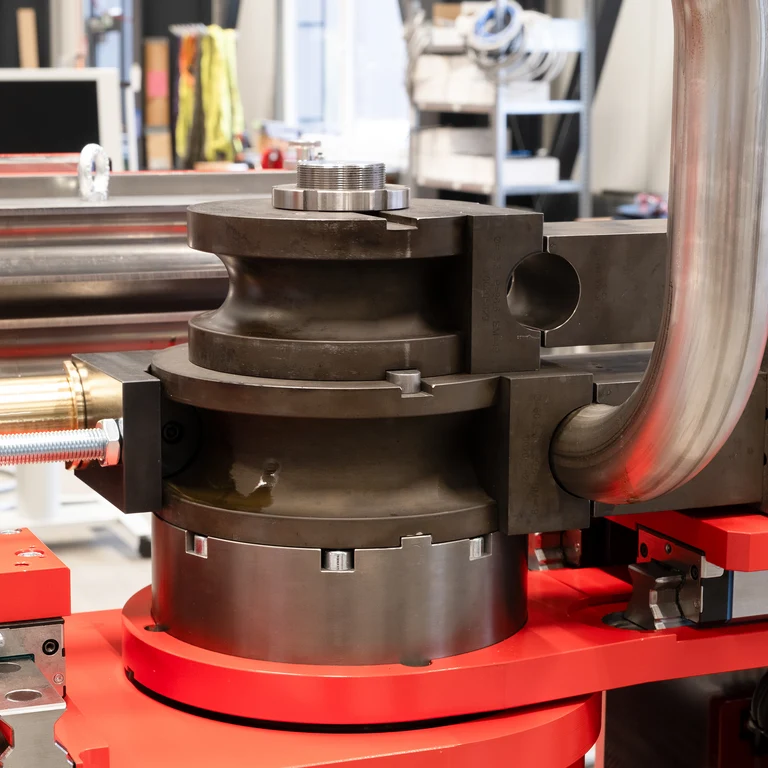

MANDREL BENDING MACHINES Right/Left Bending with CNC-Control
Download technical data| Range | 3/16" - 7/8" |
| Max. capacity | 7/8" x .72" (mild steel) 7/8" x .049" (stainless steel) |
| Max. Radii | 2.6" |
| Usable length | 6.5 ft (standard) 10 ft 15 ft 20 ft (special) |
| Speed of bending axis | 300 °/sec. |
| Range | 3/16" - 1 1/8" |
| Max. capacity | 1 1/8" x .72" (mild steel) 1 1/8" x .049" (stainless steel) |
| Max. Radii | 3.5" |
| Usable length | 6.5 ft (standard) 10 ft 15 ft 20 ft (special) |
| Speed of bending axis | 275 °/sec. |
| Range | 1/4" - 1 5/8" |
| Max. capacity | 1 5/8" x .120" (mild steel) 1 5/8" x .120" (stainless steel) |
| Max. Radii | 6.6" |
| Usable length | 6.5 ft 10 ft (standard) 15 ftmm 20 ft (special) |
| Speed of bending axis | 180 °/sec. |
| Range | 1/4" - 2 3/4" |
| Max. capacity | 2 3/4" x .154" (mild steel) 2 3/8" x .095" (stainless steel) |
| Max. Radii | 7.1" |
| Usable length | 10 ft (standard), 15 ft, 20 ft (special) |
| Speed of bending axis | 100 °/sec. |
Tube bending machines and excellent service
Gives service technicians remote access to machine controls.
The excellent 24-hour after-sales service from transfluid® also guarantees particular sustainability of our solutions.
Flexible, fast and comprehensive spare parts supply through spare parts warehouse in the USA.
t project – Software: virtual support for higher efficiency
Fewer steps to the finished workpiece: With t project you can see all the variables of the bending process before starting the production. Even complex bending geometries can be planned and executed in a material-adapted and collision-free manner.
The virtual bending simulation determines exact bending times and cutting lengths and checks tube geometries for feasibility in advance. Tube data and bending results are documented with accuracy and they can then be replicated 100% . The common interfaces are available for the import and export of data and connection to PDA or ERP over the network.
t motion - automation
for an ideal product flow
With t motion we plan and execute manufacturing islands or cells for your tube processing with optimized material flow. We design a layout to match your requirements and integrate all the required processing and handling options. With our 30 years of experience with automation we can offer you a solution for tubes at the highest level.
